The distributed modular energy storage system is an energy storage system designed by Nanjing AE System for industrial and commercial power consumption scenarios. The PACK and BMS in the system are all developed and produced by the company itself, and the coupling degree is extremely high, which can operate safely and efficiently in various application scenarios. The energy storage system consists of a power supply cabinet and a battery cabinet. Its main features are small footprint and flexible configuration. It can be distributed in various industrial and commercial energy storage application scenarios to achieve functions such as peak cutting and valley filling, dynamic capacity expansion, participation in power grid deployment, and emergency power consumption.
With over 15 years of experience in the energy storage industry, AEAUTO core team is a leading manufacturer of energy storage systems (BESS), providing solutions for utility, commercial and residential applications.
Modular design
Isolated or non-isolated modules with different power levels are available
AC/DC.DC/DC unidirectional or bidirectional
l conversion module can be selected MPPT module to achieve photovoltaic access
STS module is optional for off-network switching
Flexible configuration
Outdoor cabinet design, small footprint, power cabinet and battery cabinet can be configured according to actual needs
Flexible capacity increase and decrease, multiple power cabinetsand battery cabinets can be combined to achieve larger capacity applications
Independent branch input
A single cluster (single cabinet) battery independently matches a group of power conversion devices, and a multi-battery cabinet corresponds to multiple groups of power conversion devices in the power cabinet
Safe and reliable
The protection level of the battery cabinet is IP55,and that of the power cabinet is IP54
The four-level fire protection system escorts the safe and stable operation of the battery system
The battery cabinet has a small capacity design, the cabinet is physically isolated, and the fault is controllable
Fire Suppression System
Intelligent Power Conversion System
Temperature Control System
Power Distribution Unit
And intelligent Monitoring System

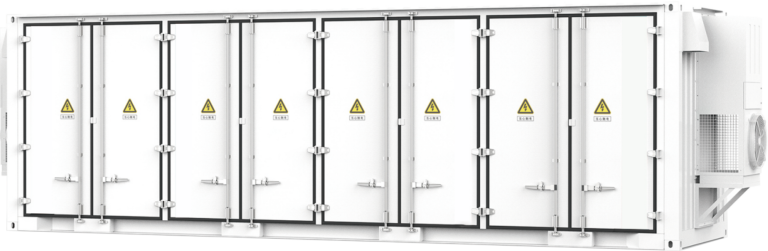

Container of international standard
The lithium battery is used as an energy storage carrier to store electric energy and supply electric energy with in a certain time, and the provided electric energy has smooth transition,peak cutting and valley filling, frequency requlation and voltage regulation functions.

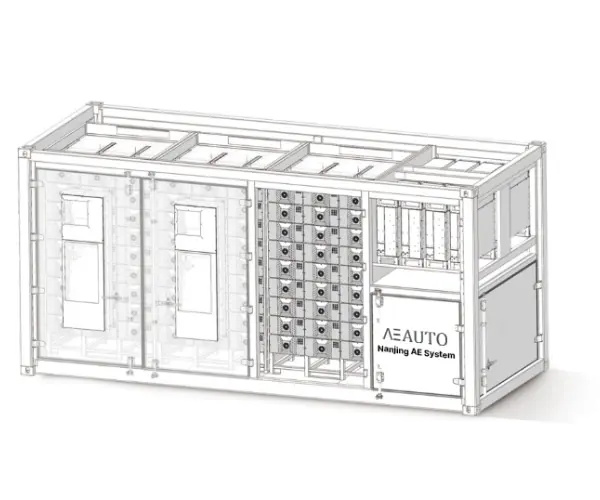

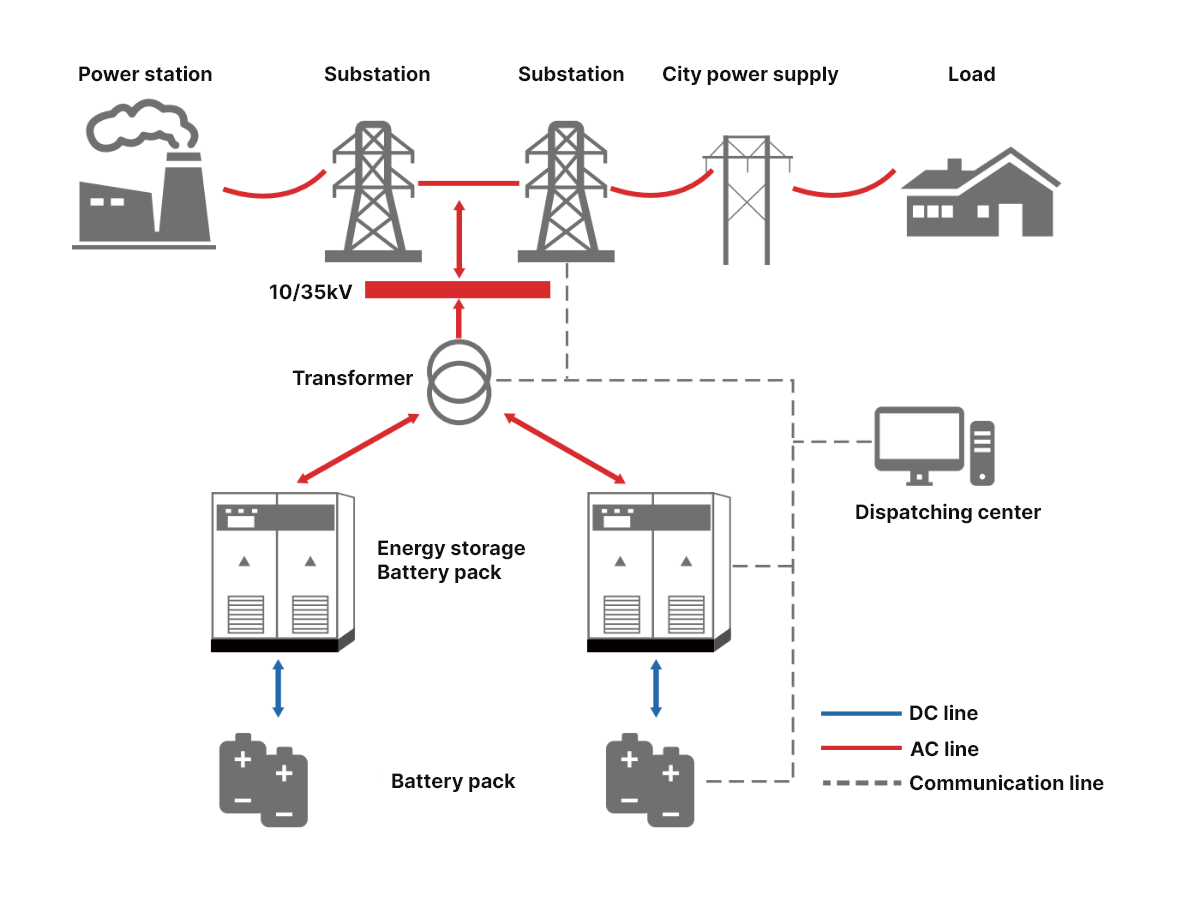

The AEAUTO grid-side energy storage solution works by utilizing an energy storage system to store excess energy during periods of low demand. This stored energy can then be released during periods of high demand, which helps balance the load on the power system. The solution uses advanced control algorithms to manage the energy flow and ensure that the stored energy is released at the right time. This helps improve the overall reliability of the power system and reduces the risk of power outages or other disruptions.
AEAUTO's energy storage solutions can be adapted to different application scenarios according to customer needs. The aim is to reduce energy consumption and environmental pollution, reduce costs, improve efficiency and enhance the competitiveness of enterprises.
| Electrical | AEESS20/30/40HC | ||||
|---|---|---|---|---|---|
| Container specifications | 20HC | 30HC | 40HC | ||
| Container specifications | 3.01MWh | 5.27MWh | 7.53MWh | ||
| Capable capacity | 2.67-3.01 | 4.52-5.27 | 6.67-7.53 | ||
| Adapted voltage range | 1000-1500V | ||||
| Charge and discharge multiplier | 0.5CP | ||||
| Cell parameters | LFP-3.2V-280Ah-896Wh | ||||
| Module parameters | LFP-38.4V-560Ah-21.504kWh / LFP-76.8V-280Ah-21.504kWh | ||||
| Performance and Safety | |||||
| Cycle life | 8000 (90%DOD,270%EOL) | ||||
| Circulation efficiency | ≥94%(DC side) | ||||
| BMS scheme | Active Balance + Three-level Architecture | ||||
| Communication interface | Ethernet/RS-485/CAN | ||||
| Communication specifications | Modbus-TCP/IEC61850/104 | ||||
| Temperature control scheme | Intelligent Frequency Conversion Air Cooling | ||||
| Fire protection plan | Gas/Smoke/Temperature Detection + Heptafluoropropane + Water Fire Protection + Perfluorohexanone (Optional) Active Ventilation | ||||
| Insulation resistance | >10MQ | ||||
| Auxiliary power | AC380V-50Hz | ||||
| Height above sea level | 5000m (>3000m Reduce The Capacity) | ||||
| Allowable ambient temperature | -40~+55℃ | ||||
| Allow relative humidity | 0-95%Rh( No Condensation ) | ||||
| Level of protection | IP65 | ||||
| Anti-corrosion level | C4( C5 Selection And Matching) | ||||
| Structure | |||||
| Size L*W*H | 6058*2438*2896mm 9125*2438*2896mm 12192*2438*2896mm | ||||
| Full weight | 28T | 48T | 69T | ||
| Product certification | B/T36276, GB/T34131, UL1973, UL9540A, IEC62619, UN38.3 | ||||
