Commercial ESS

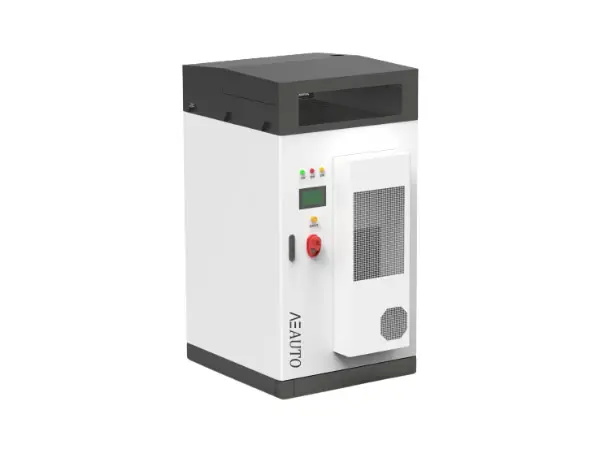

ESS outdoor cabinet single cabinet 215kw

AEAUTO Outdoor Cabinet Energy Storage utilizes high-performance

LFP batteries with a cycle life of up to 8,000 cycles. Built-in cloud device

supports remote maintenance and monitoring, fully controlling the system status.

Contact us

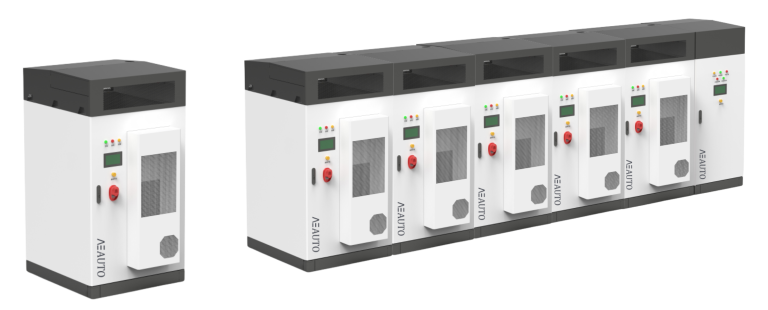

Series-Connected Energy Storage System

With over 15 years of experience in the energy storage industry, AEAUTO core team is a leading manufacturer of energy storage systems (BESS),

providing solutions for utility, commercial and residential applications.

Modular design

Integrated transportation, simple and convenient Supports parallel use of multiple machines Expandable photovoltaic inverter l Expandable DC/DC

Cloud Technologyle

Cloud Technology Battery deep discharge, cycle life more than 8000 times

Flexible Configuration

Intelligent battery thermostat control, high protection design Built-in EMS, multiple operating modes

Safe and Reliable

Systematic linkage protection C4 anti-corrosion grade design

Application Scenarios for Commercial ESS

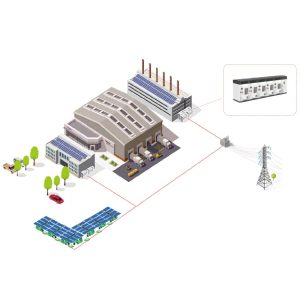

On-grid Industrial Park

  • Combined with EMS to achieve intelligent operation.
  • Apply to green emergency power backup.
  • Suitable for peak-load shifting and saving electricity bills.
  • Flexibly meet load expansion requirements,achieve management  investment savings,rgy conservation,and    emission reductions.

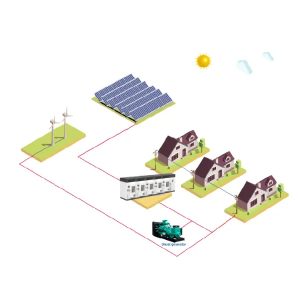

Off-grid Powerless and Power-deficient Area

  • On-grid/off grid switching in milliseconds to realize non inductive shifting between utility grid and PV or wind energy storage systems.
  • Suitable for remote villages,farms,etc. with no power deployment or lack of power.
  • Wind power or PV are prioritized for supplying power to the load and charging BESS; when insufficient,the BESS will provide power to the load.
  • Flexibly meets access requirements of other backup power sources such as diesel generators.

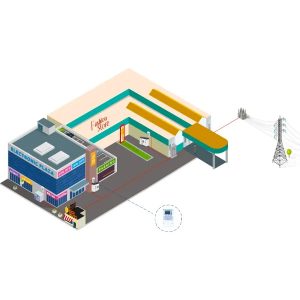

Business District & Mall

  • Patented safety design,automotive -grade,high-performance LiFePO4 battery,safe and reliable.
  • Suitable for direct access with PV modules and to boost green building development.
  • Peak and valley operation,effectively reducing electricity bills and operating expenses.
  • On-grid/off-grid switching in milliseconds to realize non inductive shifting between utility grid and PV or wind energy storage systems.

Project Cases

AEAUTO’s energy storage solutions can be adapted to different application scenarios according to customer needs. The aim is to reduce
energy consumption and environmental pollution, reduce costs, improve efficiency and enhance the competitiveness of enterprises.

Thailand

Click here to learn more about our energy storage solutions in Thailand.

UK

Click here to learn more about our energy storage solutions in UK.

Denmark

Click here to learn more about our energy storage solutions in Denmark.
Electrical AEESS20/30/40HC
Ful Capacty 215kWh
Matchable Capacity 100kW/215kWh
Cel Parameters UP-3.2V-280Ah-896wh
Module Parameters LFP-76.BV-280Ah-21.5kWh
DC Current 165A
DC Voitage Range 650-900vdc
Chargeldischarge ratio 0.5C/0.5P
Rated AC Volage 400Vac/3W+N+PE
AC Voitage Range -15%-10%(Range can be set)
Rated AC Power 100kVA
Rated AC Current 150A
Output power 125kVA
Function
Communication Interface Ethenet/RS-485/CAN
Communication protocol Modbus-TCP/EC61850/104
Temperature control program Intelligent inverter air-cooled
Fire control program Gas/Smoke/Temperature Detection+Perfluorohexanone
Structure
Dimension(W*D*H) 1100*1221+2100mm
Full Weight 2.1T
Product Certification GB/T36276、GB/T34131、GB/T34120、GB/T34133
Performance and Safety
Power factor 0.99(Adjustable range -1~+1)
Rated Operating Frequency 50Hz/60Hz(Settable)
Harmonic Distortion ＜3%(rated power)
Altitude ≥3000m(>3000m derating)
Permissible ambient temperature -20~+40°C
Allowable relative humidity 0~95%Rh(no condensation)
Protection class IP54
Anti-corrosion grade C4
