AEAUTO DC EV CHARGER

60kW / 80kW / 100kW / 120kW / 140kW / 160kW

Commercial parking / Gas station / Highway service areas / Work

RFID & mobile APP

20kW power modules upgradability

97% high efficiency

Optional plug placement

Charging wire take-up

Solar-ESS-Charging / Intelligent micorgrid / V2G

EV Charging Solution for Your Business

AEAUTO DC EV charger is fioor-mounted with simple and elegant appearance,stable frame design, complete functional coniquration, modular design.The friendhuman-computer interface is convenientfor user to operate and use,and the modular design is convenient for long-term maintenance.
lt is a high-eficiency Dc Elcharging station which is suitable for all kinds of electric vehicles.Unleash the potential of your business with advanced DC EV chargers!

Charging Station Models Comparison

Model	CEVDC60kW	CEVDC80kW	CEVDC120kW	CEVDC160kW
DC output single charging	CCS:60kW max	CCS: 80kW max	CCS:120kW max	CCS:160kW max
DC output simutaneous charging	CCS:40kW max	CCS:40kW max	CCS:60kW max	CCS:80kW max
DC output voltage range	CCS:200-1000VDC
DC output current range	CCS:0-400A
Input voltage	400Vac+/-10%,50/60Hz,3-phase+N+PE
Input current	0-250A
Dimension (HxWxD)	7505801880mm
Application scenarios	Outdoor floor-mounted
Charging groups	Double-gun round charge (CCS2)
Cable length	5m
Working temperature	-30°C~+55°C
Working humidity	5%-95% non-condensable
Height above sea level	2000m
Protection class	IP55
Cooling method	air cooling
Noise control	Less than 65 db
Charging mode	Auto charge, charge by amount, charge by power, charge by set time
Communications interface	CAN, 485, 4G or Ethernet
User interface	7*LCD display touch screen
Backstage monitoring	OCPP1.6 JSON support
Based on the criteria	IEC62196, IEC61851, ISO/EC15118, DIN SPEC70121-2014

Fast EV Charging Solution

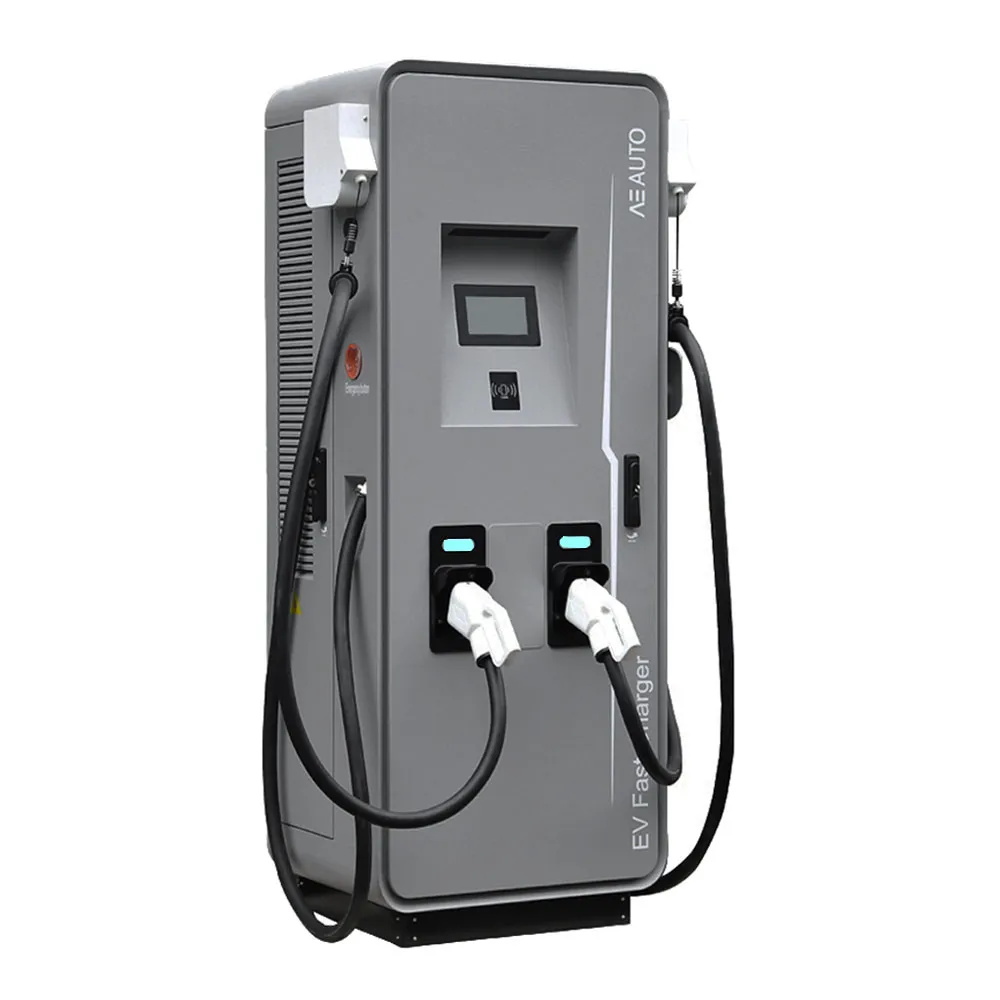

Double-plug DC

97% High Efficiency, Energy Saving

Automatic output adjustment mechanism maximizes the operation efficiency.Up to 97% conversion rate by built-in module.

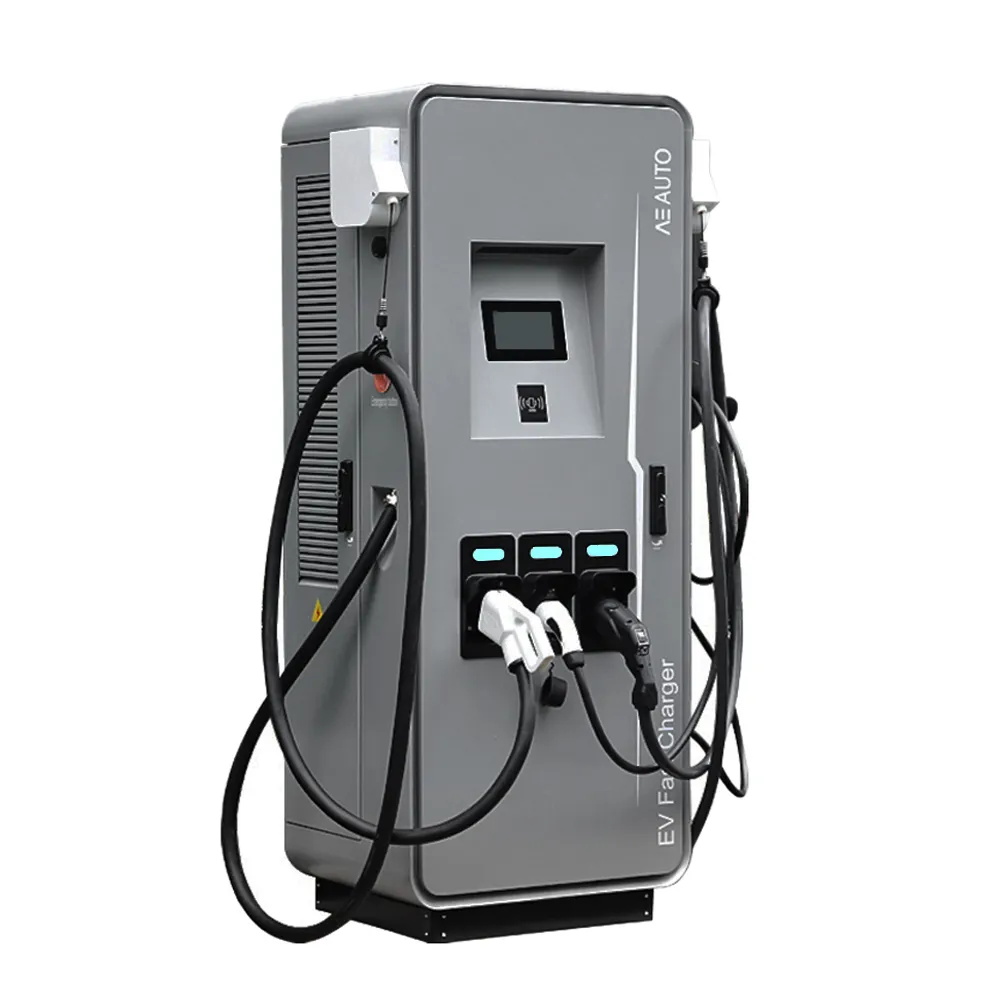

Triple-Plug DC

20min Charging, 400km Driving

Charge up from 20% to 80% in just 20 minutes; With the peak power 160kW and a maximum current of 400A, AEAUTO fast EV charger significantly shortens charging time.

Double-plug DC

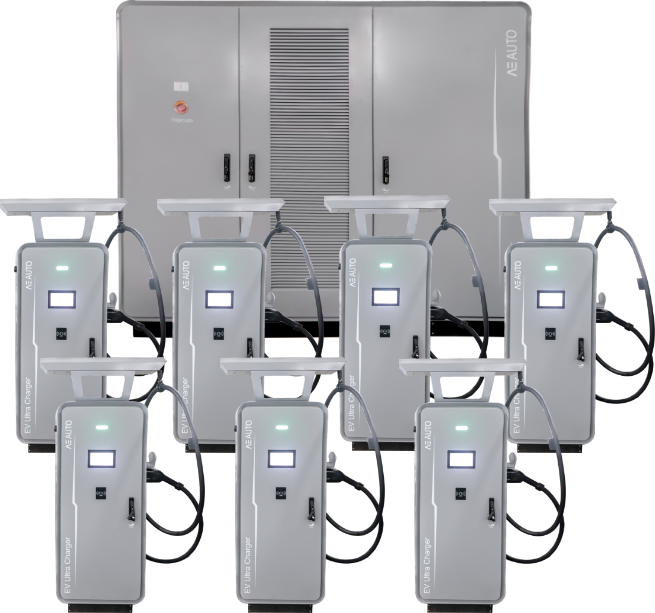

Solar-ESS-Charging/Smart Microgrid/ V2G

AEAUTO EV charger is capable of 400A, providing fast, smart and convenient charging for all electric vehicles with different charging solutions.

Double-plug DC

AEAUTO Charging Management System

Meet the intelligent device management and operation of charging stations;

AEAUTO Download

Double-plug DC

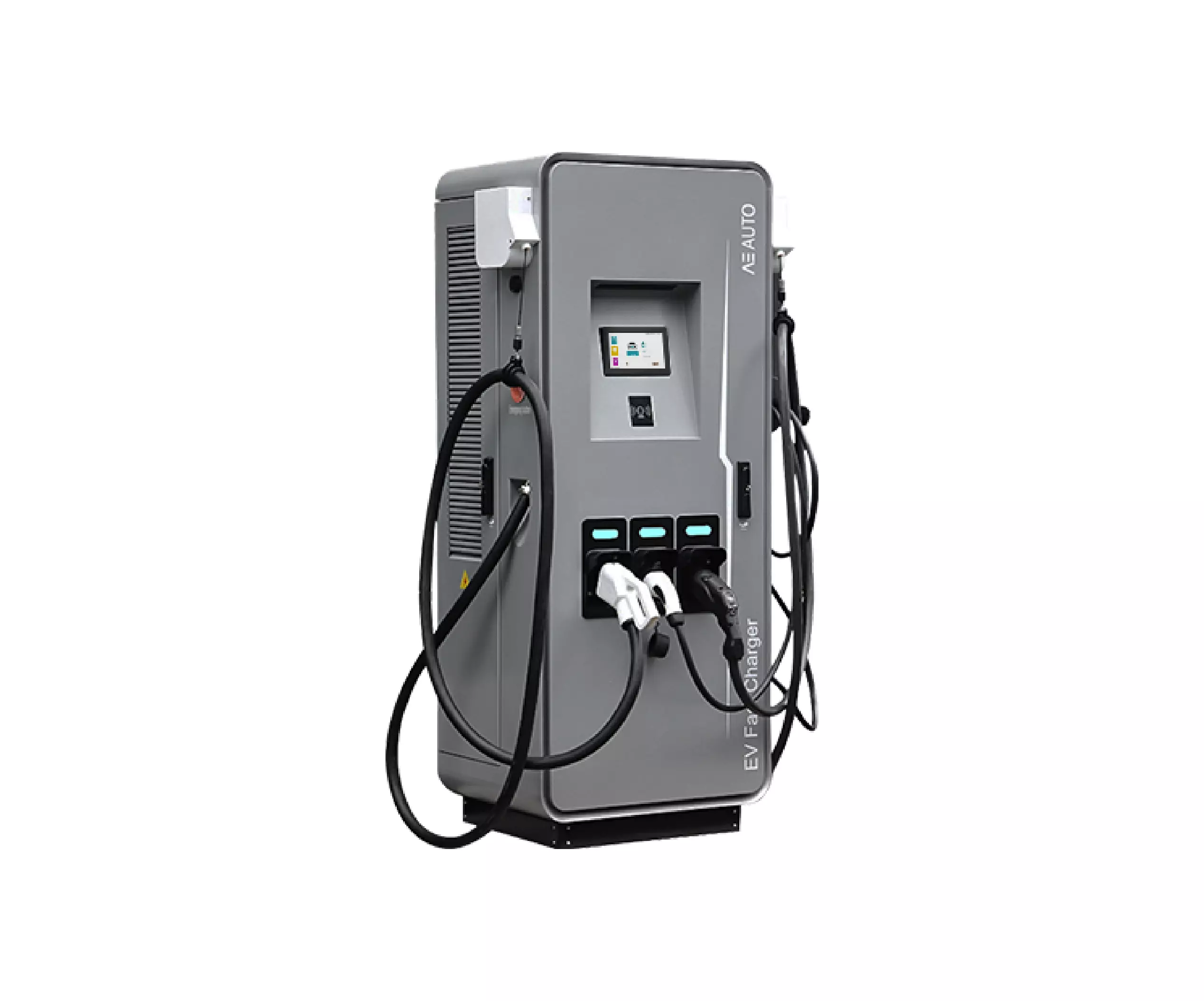

AEAUTO 60-160kW Fast Charging Station
