This innovative technology and home energy storage system enable homeowners to become more energy independent,reduce reliance on the grid, and optimize self-consumption of clean, renewable energy.
AEAUTO residential energy storage maximizes the use of solar and grid energy to power your home. Based on different home energy usage patterns, we design a system that fits your needs to handle a power outage or extreme weather event and save you money on your energy bill.
Rated Power: 10.24/15.36/20.48kWh <br>AHSystem voltage: 51.2V<br> Battery module: 100Ah<br> Cell cycle life (0.2C): 5000 cycles
Power required for free assembly

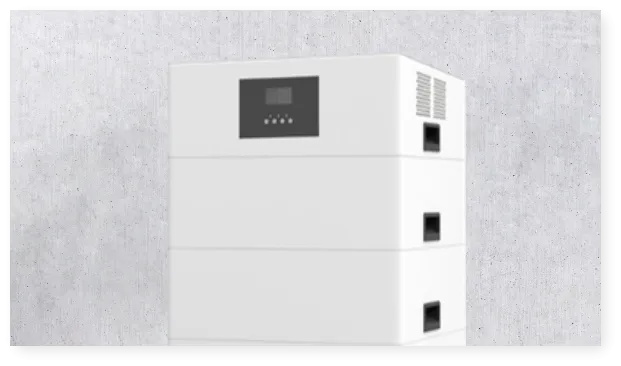

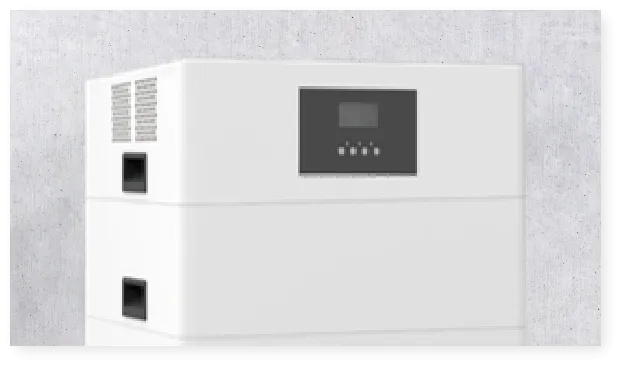

51.2V Lithium Battery System<br> with Modular & Stacked<br> Design 150Ah
AEAUTO Residential Energy Storage Systems are lithium-ion batteries combined with solar or wind power systems and connected to the grid, allowing homeowners to store excess energy for later use.

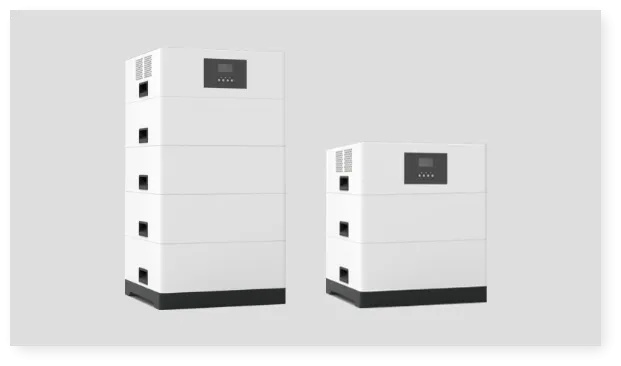

Modular design, light weight and small size
Seamless communication with the storage inverter
Suitable for long term charge/discharge cycles
Our residential ESS enables energy independence, reduces electric bills, and provides backup power in the event of
a power outage or emergency, providing an efficient solution for greening your home.

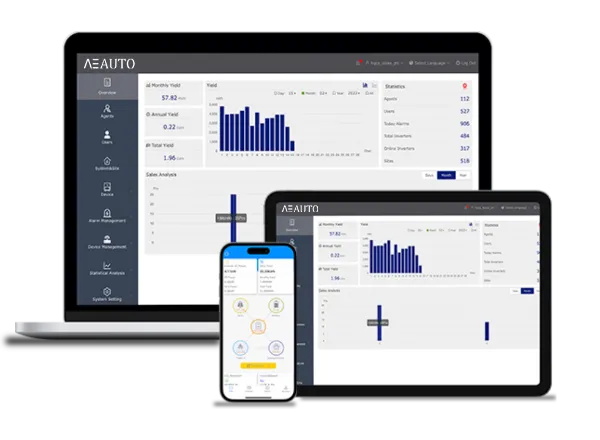

· Can be combined with third-party cloud to achieve intelligent operation and maintenance.
· Remote visual management, high-performance edge computing, and real-time security control.
· Store system operation logs in real time to facilitate fault tracking.
· Multiple operating modes, focusing on maximizing profits, and control strategies are precise and efficient.
AEAUTO's energy storage solutions can be adapted to different application scenarios according to customer needs. The aim is to reduce
energy consumption and environmental pollution, reduce costs, improve efficiency and enhance the competitiveness of enterprises.
| Battery parameter | AEESS 10/15/20 |
|---|---|
| Rated Power(kWh) | 10.24/15.36/20.48 |
| Rated Voltage(V) | 51.2 |
| Discharge voltage range (A) | 44.8-57.6 |
| Rated charging current(A) | 100A 025°℃ |
| Maximum charging current(A) | 150A025°℃ |
| Discharge depth | D0D 90% |
| Communication mode | RS485/CAN |
| Life span | 5000 cycles 0.5C 025℃ |
| Operating temperature | charging 0C-50℃/discharge -10℃-55℃ |
| Storage temperature | temperaturg-10C—55℃ |
| Cell material | Lithium iron phosphate |
| Battery warranty period | 3year |
| Inverter parameter | |
| Rated power | 10000W |
| Rated voltage | 230VAC |
| Maximum charging current(A) | 150A |
| Frequency | 50Hz-60Hz |
| Switching time | <20ms |
| Wave form | Sinusoidal wave |
| Battery access voltage | 40-60V |
| Maximum PV access voltage(open circuit) | 500VDC |
| Maximum PV input power | 5000W*2 |
| MPPT operating voltage range | 90-450VDC |
| Inverter warranty period | lyear |
| Basic parameter | |

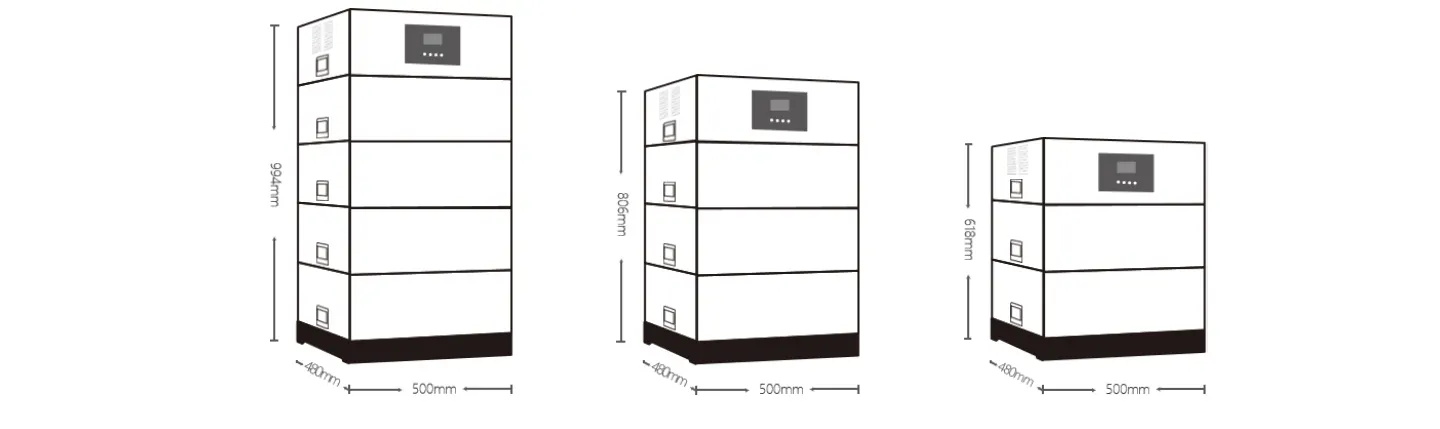

| Length*Width*Height(mm) | 500*480*618/806/994mm |
| weight(kg) | 124.6kg |
| WIPI module | / |
| Aerosol fireproof module | / |
